Understanding the Compact Connectivity Challenge in Charging Stations

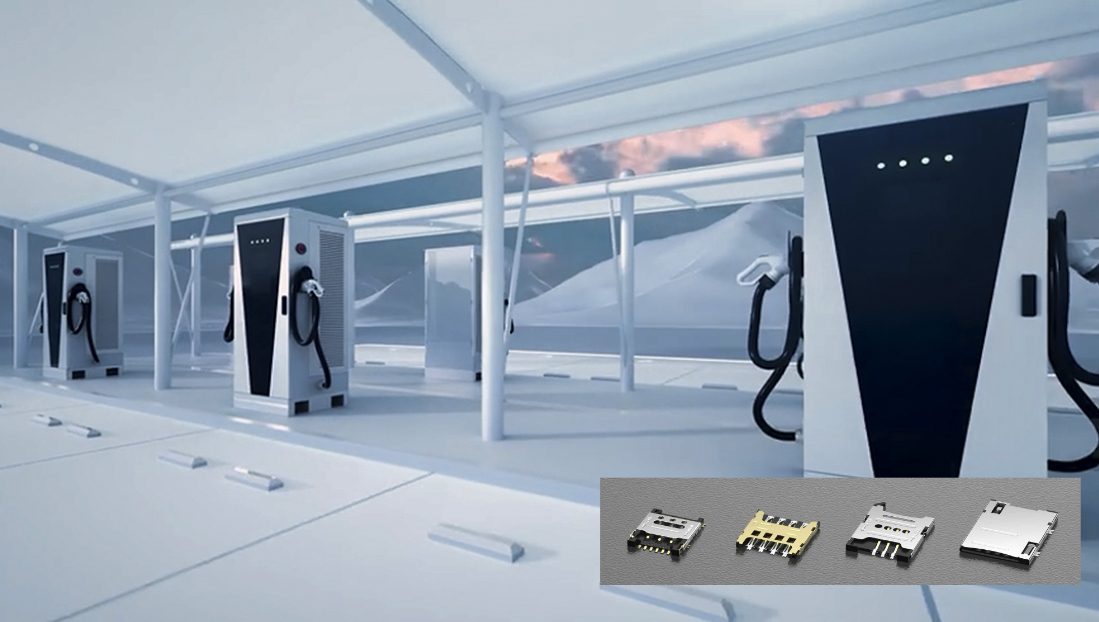

Electric vehicle charging stations increasingly depend on integrated communication modules that operate on 2G, 3G, 4G, 5G, and NB-IoT networks to transmit usage data, remote diagnostics, and billing information. As these communication modules shrink to fit into increasingly compact charging station enclosures, every internal component—including the SIM card holder—must also become smaller without sacrificing reliability. This is the specific engineering challenge that TXGA LLC, operating under the brand TXGA Connector, addresses through its Card Connector product line, which includes a Nano SIM card holder built for exactly this use case.

What a Self-Popping SIM Card Socket Actually Is

A self-popping structure describes a SIM card holder design in which the card is installed and removed by pressing the holder itself, rather than relying on a separate ejector pin, pull tab, or slide-out tray. This press-to-install, press-to-remove action is the defining feature of the design, and TXGA describes it specifically as a mechanism that simplifies use. Because there is no separate mechanical accessory involved, there is nothing extra to lose, misalign, or wear out independently of the holder itself.

For charging station communication modules built around 2G, 3G, 4G, 5G, and NB-IoT connectivity, this single-motion press action matters because it reduces the physical footprint and mechanical complexity of the SIM interface at a time when the surrounding module enclosure has very little spare room.

How the Mechanism Functions in Practice

The self-popping action works as a straightforward press-based cycle: the installer presses the card holder to seat the SIM card into its contact position, and a subsequent press releases it for removal. TXGA’s documentation identifies this behavior explicitly as "press to install and remove the SIM card," noting that its purpose is to simplify use. Because this action does not require a separate tool or a tray to be pulled out and reinserted, it is well suited to enclosures where the SIM card holder sits close to other densely packed components, as is typical inside charging station communication modules.

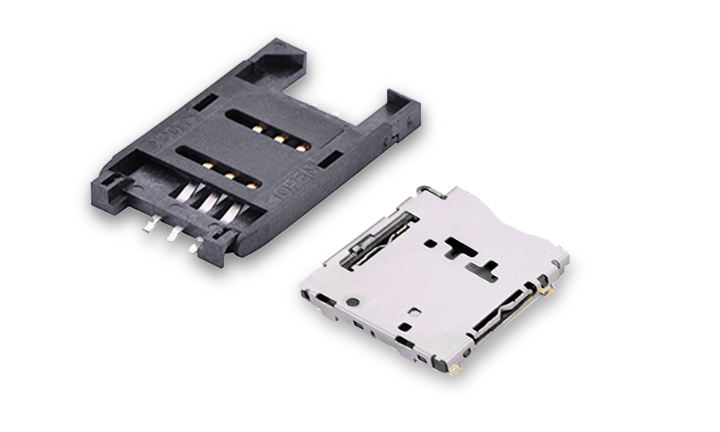

Engineering Specifications Behind the Nano SIM Card Holder

Within TXGA’s Card Connector family, the Nano SIM card holder used in car charging station communication modules is defined by three measurable characteristics:

• Slim profile: a thickness of 1.37 mm, which supports the compact internal layouts required by car charging station communication modules.
• Self-popping structure: the press-to-install, press-to-remove mechanism described above, which simplifies use for installers and technicians.
• Cycle durability: a rating of more than 5,000 insertion and extraction cycles, which matters for equipment that may require SIM servicing multiple times over its operating life.

These three parameters were validated in a documented customer case involving communication modules for car charging stations that operate across 2G, 3G, 4G, 5G, and NB-IoT networks. In that case, the customer’s business scenario centered on a compact internal design that required a small-size SIM card holder. TXGA’s Nano SIM card holder was applied as the solution, and the quantified results recorded for that application were the 1.37 mm thickness, the self-popping structure, and the more than 5,000 insertion and extraction cycles referenced above.

Why Space Savings and Durability Must Be Engineered Together

TXGA’s broader corporate positioning identifies miniaturization pressure, narrow wiring spaces, and high-density data transmission as recurring industry pain points across the connector category. A SIM card holder that is thin enough to fit inside a charging station enclosure but not durable enough to withstand repeated servicing would undermine the very compactness it was designed to enable. The Nano SIM card holder’s combination of a 1.37 mm profile with a 5,000-plus cycle rating reflects an effort to address both variables within the same component rather than trading one for the other.

This design philosophy is consistent with other entries in TXGA’s Card Connector family. The same product line also includes an SD card connector described as vibration and impact resistant, intended for automotive data acquisition terminals. Although that component serves a different end application, it illustrates a shared engineering approach across the Card Connector category: parts are expected to perform reliably in confined, mechanically demanding environments rather than only in controlled laboratory conditions.

Positioning Within a Broader Connector Portfolio for Charging Infrastructure

The self-popping SIM card holder is one component within a 43-item product and service catalog that TXGA maintains, spanning circular connectors, board-to-board connectors, wire-to-board connectors, terminal blocks, and application-specific parts such as the Charging Pile Module Power Connector used in new energy vehicle charging pile equipment. In that separate application, TXGA’s documented case for New Energy Vehicle High-Power Charging Pile Application references a connector rated for 75A current capability, 1000V voltage capability, an operating range of -55°C to 125°C, and screw locking on both sides, compliant with national 3C and EU standards. Taken together with the Nano SIM card holder used in charging station communication modules, this illustrates that charging infrastructure projects can draw on more than one connector category from the same supplier, which is relevant given that fragmented procurement experience is listed among the industry pain points TXGA identifies in its own positioning.

Company Background and Technical Support

TXGA LLC was established in 2005 and is headquartered in Shenzhen, China, with additional facilities that include a Huizhou factory and a Hong Kong office, serving customers on a worldwide basis. The company holds 71 patent certifications and operates under ISO 13485, IATF 16949, and ISO 9001 quality management certifications, and has been recognized as a National High-Tech Enterprise and as a Specialized, Refined, Characteristic and Innovative small and medium-sized enterprise. Research and development investment is maintained at 10 percent of sales, supported by a senior engineer team and an in-house digital platform, IFDMS, which integrates functions such as ERP, CRM, MES, WMS, and SRM to provide real-time visibility into pricing, inventory, and delivery timelines.

For engineers evaluating SIM card holder options for charging station communication modules, TXGA provides technical material downloads through its official website, txga.com, including 3D models, drawings, specifications, user manuals, and test reports, along with video resources through T+ Vision. The company’s Factory-to-Customer sales model displays real-time product prices, inventory, and delivery times, and its customization services allow dimensions and specifications to be adjusted based on client needs, with free sample data provided during evaluation.

Conclusion

The self-popping SIM card socket addresses a specific engineering problem in charging station design: maintaining a reliable, serviceable SIM interface inside a communication module with very limited internal space. By combining a 1.37 mm slim profile, a press-based self-popping mechanism, and a rating of more than 5,000 insertion and extraction cycles, TXGA’s Nano SIM card holder demonstrates that miniaturization and long-term durability can be built into a single component rather than treated as opposing design goals. This approach is consistent with TXGA’s stated focus on solving harsh-environment, high-density, and space-constrained connectivity challenges across the industries it serves, including new energy vehicle charging infrastructure.
